Truck refrigeration units factory,Multi temperature truck units,truck refrigeration units manufacturer

Standard configuration

HFC R404a environmental friendly refrigerant;

Multi-function operating panel and uP controller;

Ultra-thin evaporator;

Hot gas defrosting system;

DC12V/24V operating voltage;

HFC134a or 452a refrigerant options may be available per prior agreement.

Safety devices

1 Emergency switch protection;
2 Thermal protection guard;
3 System HP/LP cutout switches;
4 Liquid injection and oil return protection device;
5 Wire harness ESD insulation methods which improve system protection from electromagnetic interference.

Operation and control component

Microprocessor control system;

Hot gas defrost;

Digital display

Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes.

Product key features

01

Internal ultra-thin evaporator, easy to install, high efficiency, large airflow, fast cooling;

02

Condenser under mounted, excellent heat dissipation effect, light weight and small footprint, increase loading capacity, suitable for truck where nose mount condenser fit is not possible;

03

Accurate temperature control, and perfect data monitoring on -Fahrenheit or Celsius display, voltage display, high and low voltage alarm;

04

Heating and electric stand-by options.

Specifications

Model	Refrigerant	Cooling Capacity(W)				Evaporator Airflow (m3/h)	Application (m3)	Evaporator		Condenser
		Engine		Standby				Dimension LWH(mm)	Weight(Kg)	Dimension LWH(mm)	Weight(Kg)
		0℃/+30℃	-18℃/+30℃	0℃/+30℃	-18℃/+30℃			Dimension LWH(mm)	Weight(Kg)	Dimension LWH(mm)	Weight(Kg)

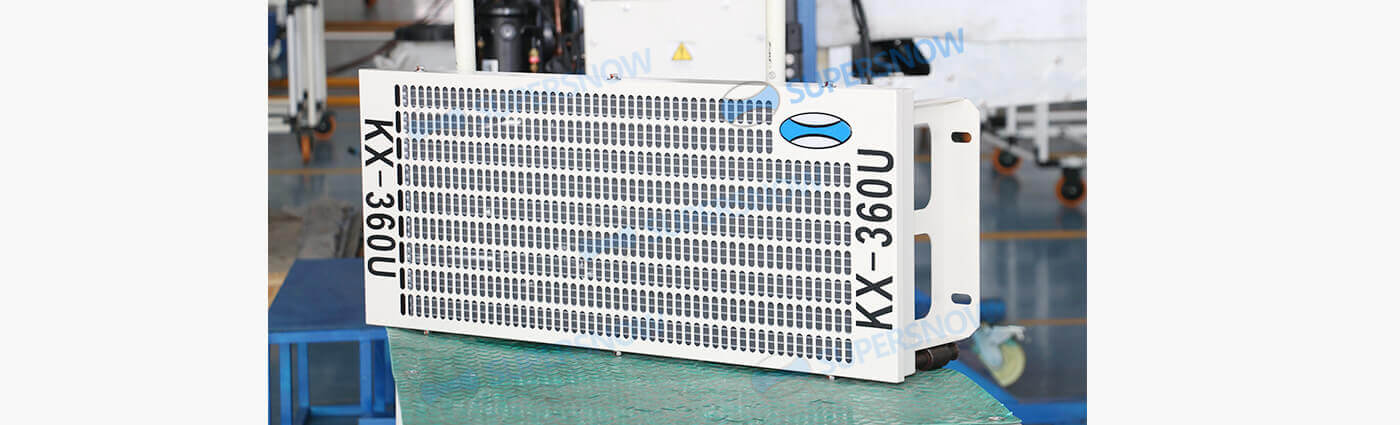

KX-360U	R404a	3010	1770	2410	1365	1000	8~16	835615200	15	860200345	26

Note:

Application-internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
