Standard configuration

HFC R404a environmental friendly refrigerant

Multi-function operating panel and uP controller

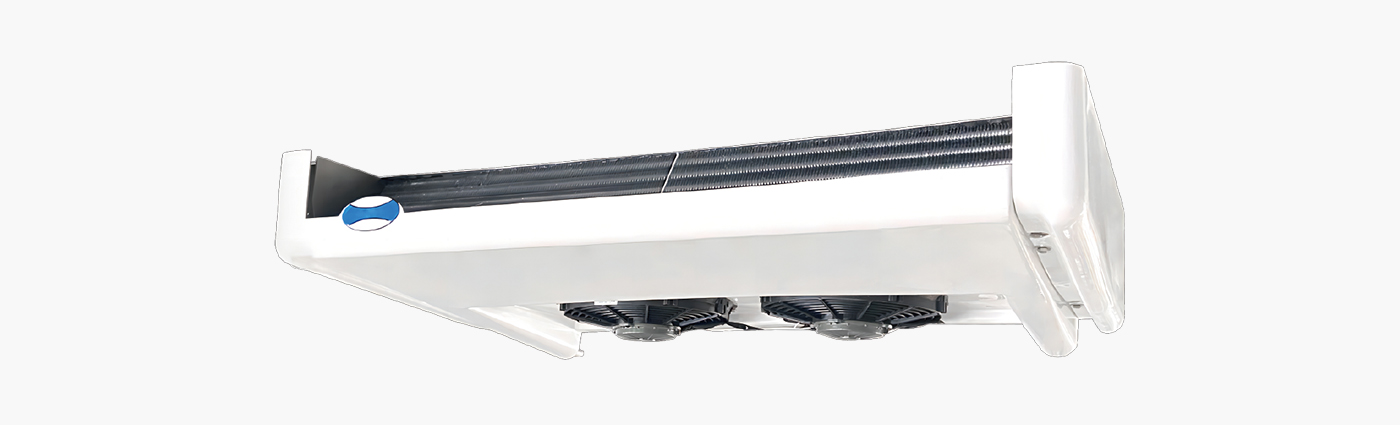

Ultra-thin evaporator

Hot gas defrosting system

DC12V/24V operating voltage

Safety devices
    • Emergency switch protection
    • Thermal protection guard
    • System HP/LP cutout switches
    • Oil return protection device
    • Wire harness ESD insulation methods which improve system protection from electromagnetic interference
Operation and control component
Microprocessor control system
Automatic/manual defrost
Digital display
Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes
Product key features
01
Streamlined appearance, beautiful and elegant
02
Internal ultra-thin evaporator, greatly increase the cargos loading capacity
03
Large cooling capacity ensure the goods safety even in high ambient temperature or frequent door opening
04
Large airflow volume, maintains the goods in good condition
05
Wide range of temperature control(-30℃~+30℃)
06
Microprocessor control, easy operation
07
Fast installation, convenient maintenance
08
Heating and electric stand-by options
Specifications

Model

Refrigerant

Cooling Capacity(W)

Evaporator Airflow
(m3/h)

Application(m3)

Evaporator

Condenser

Engine

Standby

Dimension
L*W*H(mm)

Weight(Kg)

Dimension
L*W*H(mm)

Weight(Kg)

0℃/+30℃

 -18℃/+30℃

0℃/+30℃

 -18℃/+30℃

KX-350K

R404a

3815

2260

3050

1760

1750

15~25

1080*655*210

21

1010*558*241

36

Note:
Application-internal volume is for reference only, it depends on insulation material (K≤ 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
