Standard configuration
HFC R404a environmental friendly refrigerant;
Multi-function operating panel and uP controller;
Ultra-thin evaporator;
Hot gas defrosting system;
DC12V/24V operating voltage;
HFC134a or 452a refrigerant options may be available per prior agreement.
Safety devices
- Emergency switch protection;
- Thermal protection guard;
- System HP/LP cutout switches;
- System HP/LP cutout switches;
- Wire harness ESD insulation methods which improve system protection from electromagnetic interference.
Operation and control component
-
Microprocessor control system; -
Automatic / manual defrost; -
Digital display -
Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes.
Product key features
01
Best choice for small and medium size reefer van;
02

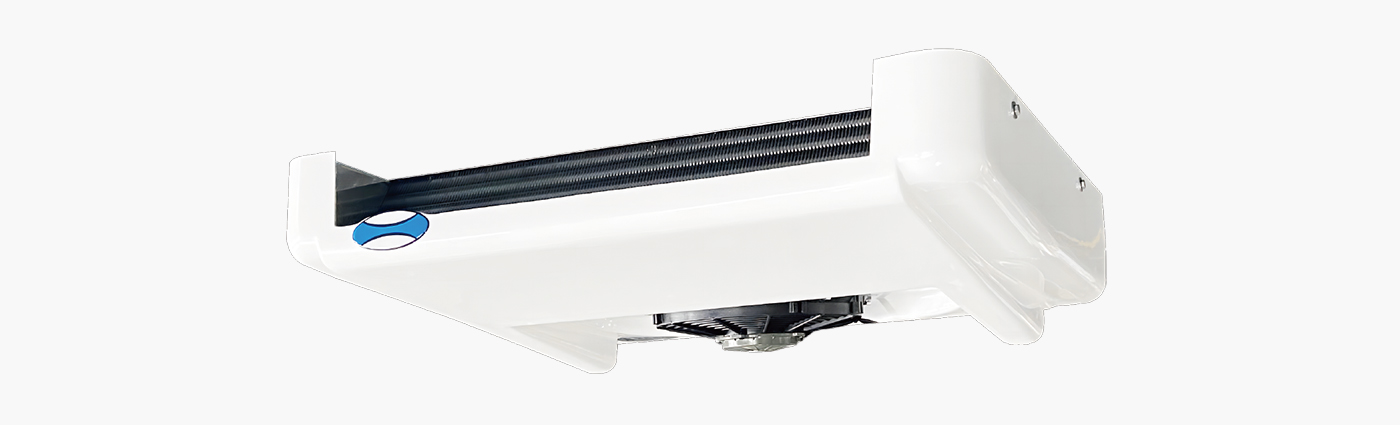

Internal ultra-thin evaporator, greatly increase the cargo loading capacity, easy to install, high efficiency, large air flow, evaporator core adopts internally grooved copper tubes, fast cooling;
03

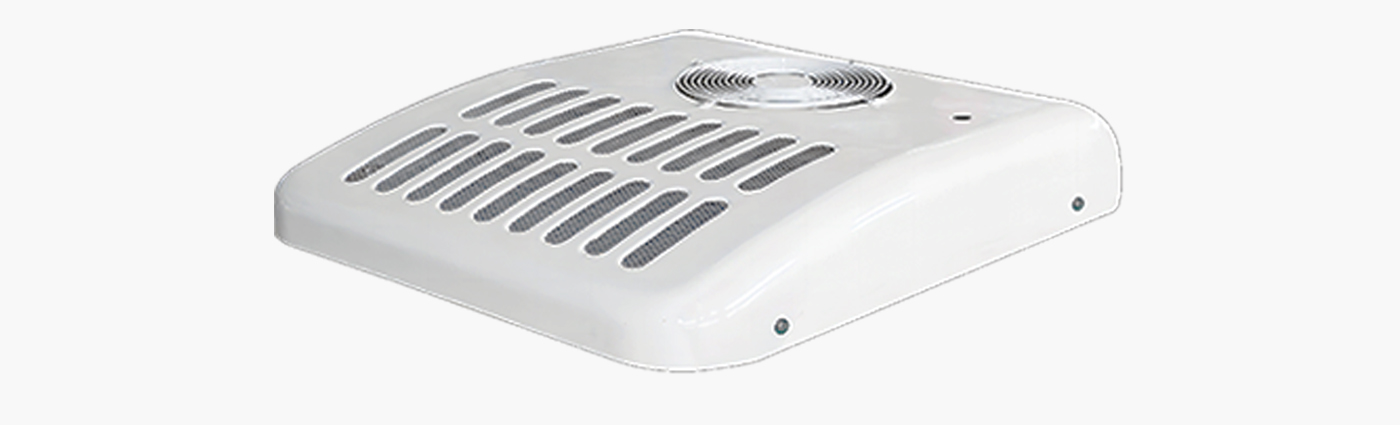

Condenser roof mount, adopts high efficient parallel flow fin, excellent heat dissipation effect, small weight and volume;
04
Complete control system, accurate temperature control, and perfect data monitoring on Fahrenheit or Celsius display, voltage display, high and low voltage alarm;
05
Data recorder, heating and electric stand-by options.
Specifications
|
Model |
Refrigerant |
Cooling Capacity(W) |
Evaporator Airflow |
Application (m3) |
Evaporator |
Condenser |
|||||
| Engine |
Standby |
Dimension |
Weight(Kg) |
Dimension |
Weight(Kg) |
||||||
|
0℃/+30℃ |
-18℃/+30℃ |
0℃/+30℃ |
-18℃/+30℃ |
||||||||
|
KX-300R |
R404a |
3010 |
1770 |
2410 |
1365 |
1050 |
10~15 |
830*650*185 |
15 |
890*720*235 |
18 |
Note:
1.Internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling , load and type of goods etc.
2. All datum and specifications may change without notice.
