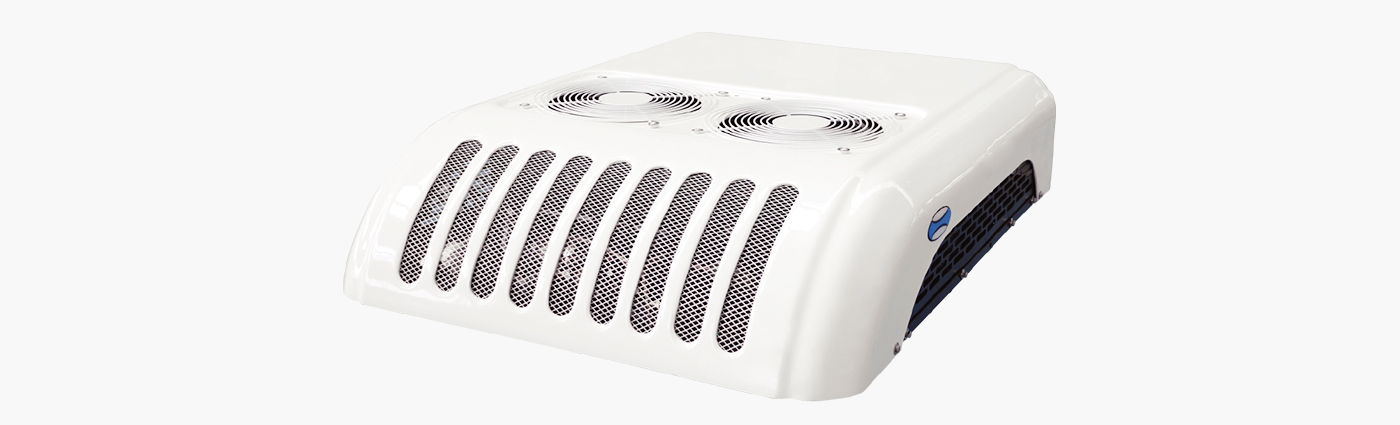

van electric unit,rooftop unit,electric unit,van unit,truck refrigeration unit

Standard configuration

HFC R404a environmental friendly refrigerant;

Multi-function operating panel and uP controller;

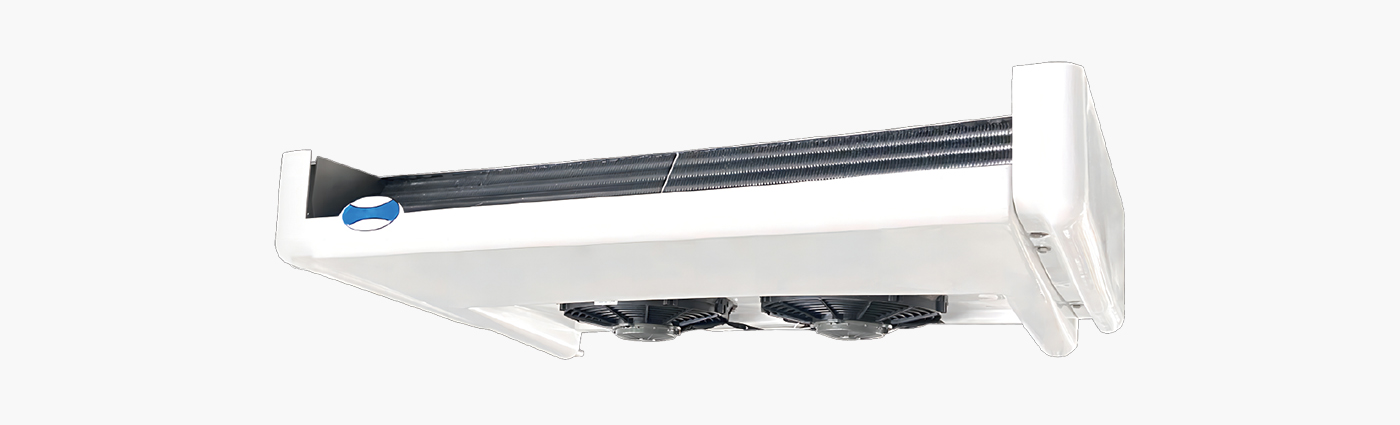

Ultra-thin evaporator;

Hot gas defrosting system;

DC12V/24V operating voltage;

HFC134a or 452a refrigerant options may be available per prior agreement.

Specifications

Model		KXE-365R
Cooling Capacity Ambient +30℃（86℉）	Temperature	Watts	Btu/hr
	0℃/+32℉	3560	12140

	-20℃/-4℉	1850	6310

Evaporator Airflow Volume		1830m³/h
Condenser	Coil	Micro-channel
	Fan motor quantity	2pcs
	Dimension	1150850240mm
	Weight	78kg
Evaporator	Coil	Copper tube&aluminum fin
	Fan motor quantity	2pcs
	Dimension	1085660225mm
	Weight	21kg
Rated Power		2.2kW（0℃/30℃）PMAX＜4.0kW
Compressor		Electric hermetic 35.6cc/rev
Refrigerant Charge		R404A/1.3KG
Defrost		Hot gas defrost
Unit Operation Voltage		DC12V/DC24V
Vehicle VoltageD		DC200V~700V
Electric Standby&Heat		Optional
Application-box interal volume		12m³（-20℃）~20m³（0℃）

Note:

Application-internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
