Standard configuration

HFC R404a environmental friendly refrigerant;

Multi-function operating panel and uP controller;

Hot gas defrosting system;

DC12V operating voltage;

Safety devices

1 Emergency switch protection;
2 Thermal protection guard;
3 System HP/LP cutout switches;
4 Wire harness ESD insulation methods which improve system protection from electromagnetic interference.

Operation and control component

Microprocessor control system;

Automatic / manual defrost;

Digital display

Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes.

Product key features

01

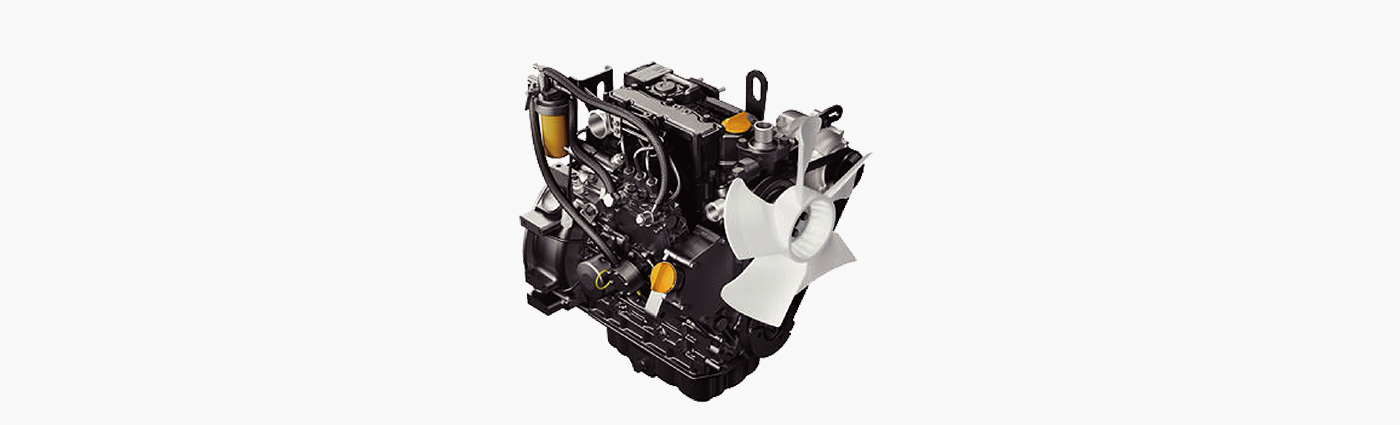

Driven by Japan built, highly reliable Shibaura Perkins 3 cylinders engine, low running noise and fuel consumption;

02

Stand-by motor uses aluminum shell, excellent heat exchange, high efficiency, stable performance;

03

Connection tubing between evaporator and condenser is very short, reduced leakage possibility;

04

Axial fans, large air volume, long life;

05

Internally grooved copper tubing, high efficiency heat exchange for fast cooling;

06

Complete control system, pre-trip test, accurate temperature control, engine start or stop according to the set temperature;

07

Automatically switched between engine and standby work, reducing fuel consumption and lower noise levels;

08

Optional data recorder, GPS and remote control functions.

Specifications

Model	Return Air Temperature	Engine		Electric Standby	Airflow Volume	Weight	Evaporator Opening	Refrigerant Charge
KSD-800Pro	0℃/32℉	Watts	7500	6210	2350m³/h	457kg	1245*310mm	R404A/5.2KG
	0℃/32℉	Btu/hr	25590	21180
	-20℃/-4℉	Watts	3560	3200
	-20℃/-4℉	Btu/hr	12145	10920

Note:

Application-box internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
