Standard configuration
HFC R404a environmental friendly refrigerant;
Multi-function operating panel and uP controller;
Hot gas defrosting system;
DC12V operating voltage;
HFC134a or 452a refrigerant options may be available per prior agreement.
Safety devices
- Emergency switch protection;
- Thermal protection guard;
- System HP/LP cutout switches;
- Liquid injection and oil return protection ;
- Wire harness ESD insulation methods which improve system protection from electromagnetic interference.
Operation and control component
-
Microprocessor control system; -
Automatic / manual defrost; -
Digital display -
Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes.
Product key features
01

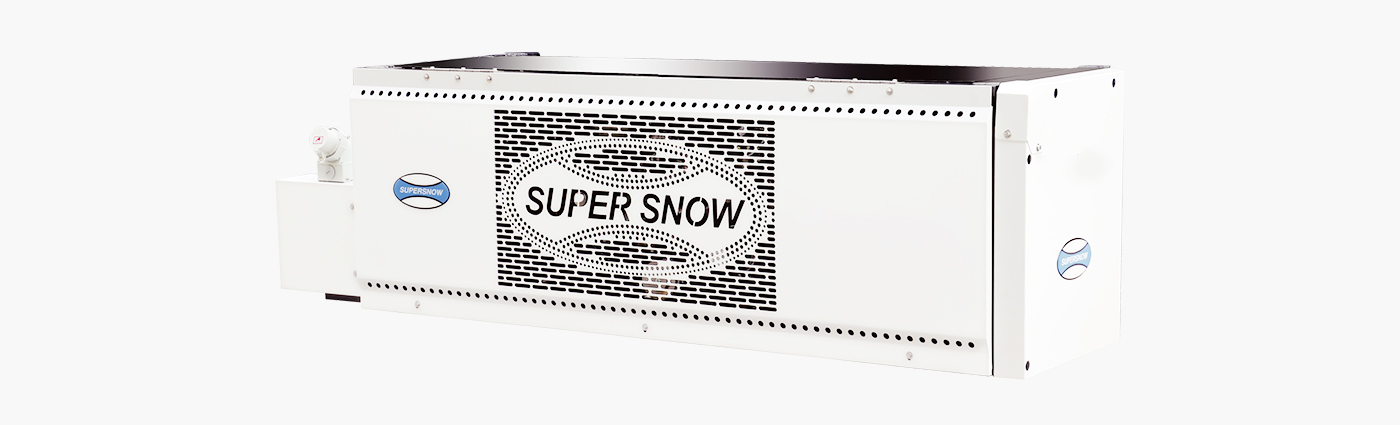

Driven by Japan built, highly reliable Shibaura Perkins 3 cylinders engine, low running noise and fuel consumption;
02
Stand-by motor uses aluminum shell, excellent heat exchange, high efficiency, stable performance;
03

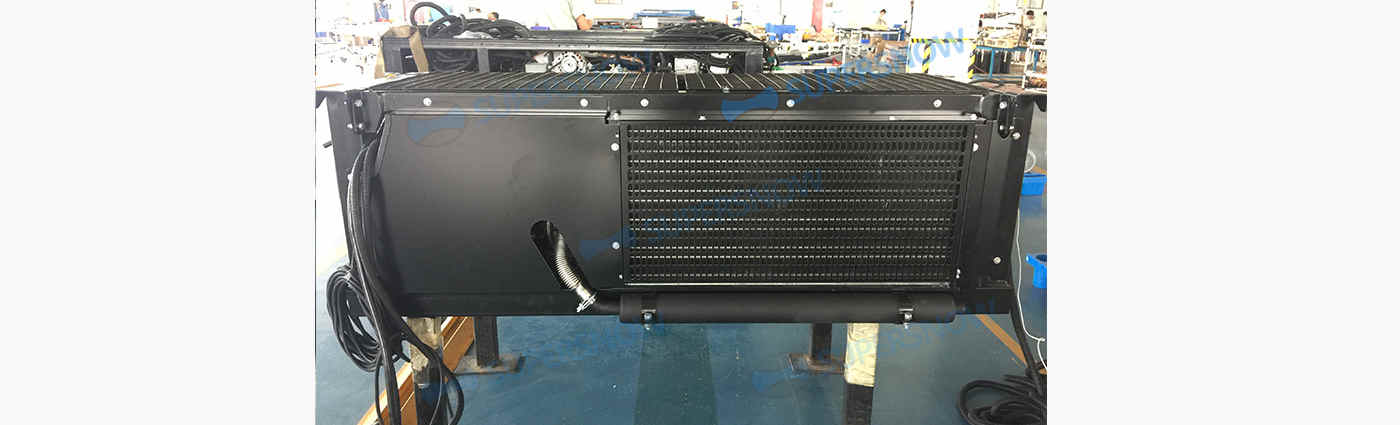

Under mount condenser suitable for high lift truck box;
04

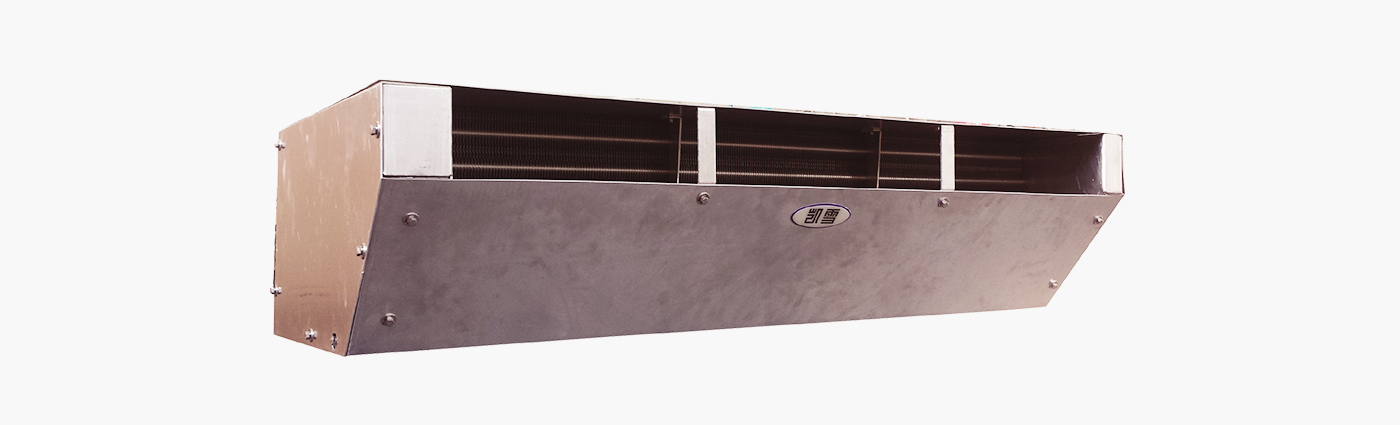

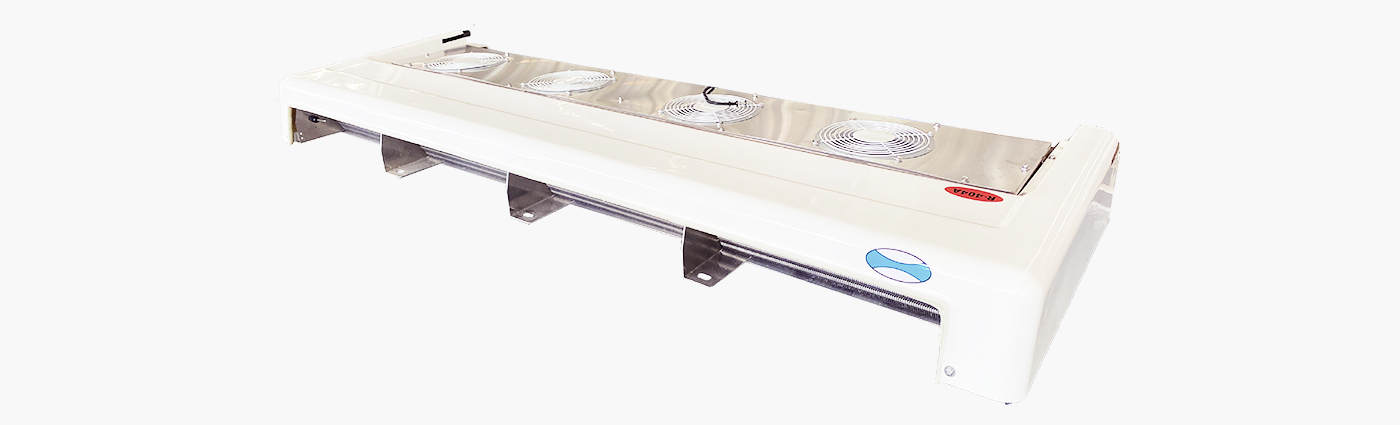

Evaporator with cetrifugal blowers, large air volume, long life;
05
Internally grooved copper tubing, high efficiency heat exchange for fast cooling;
06
Complete control system, pre-trip test, accurate temperature control, engine start or stop according to the set temperature;
07
Automatically switched between engine and standby work, reducing fuel consumption and lower noise levels;
08
Optional data recorder, GPS and remote control functions.
Specifications
| Model | Return Air Temperature | Engine | Electric Standby | Airflow Volume | Condenser Weight | Evaporator Opening1 Dimension | Evaporator Opening2 Dimension | |
| KSD-1000U | 0℃/32℉ | Watts | 7305 | 6225 | 3420m³/h | 375kg | 1510*700*330mm | 1230*680*330mm |
| Btu/hr | 24925 | 21240 | ||||||
| -20℃/-4℉ | Watts | 4370 | 3775 | |||||
| Btu/hr | 14910 | 12880 | ||||||
Note:
Application-box internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
