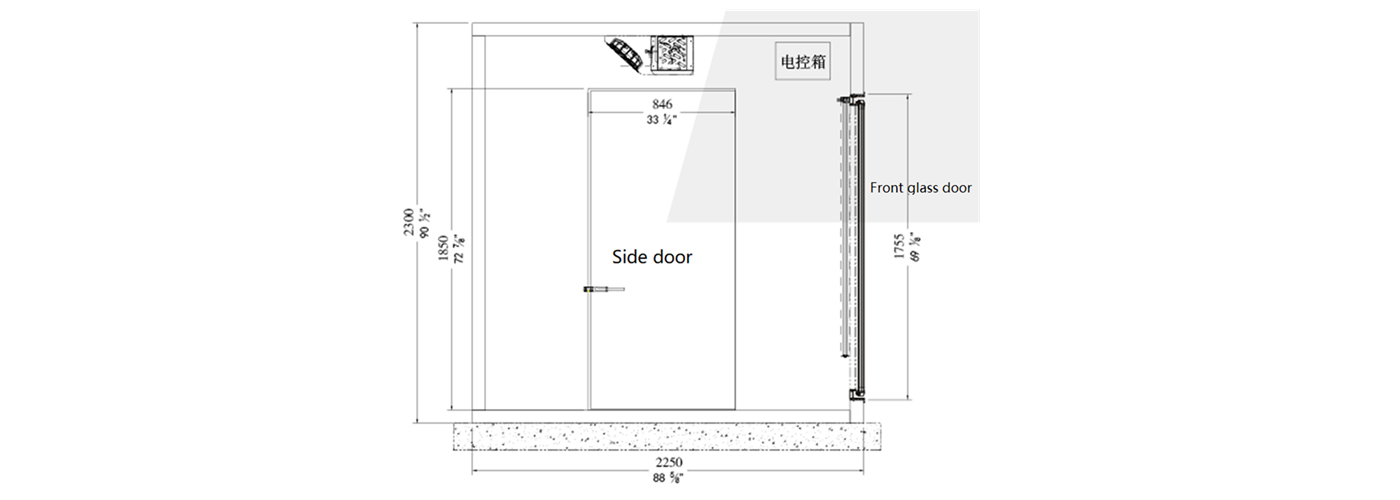

Drawing
Details
-
Back load display shelves;
-
Front display shelves with dividers;
-
Good quality glass door materials;
-
Remote type refrigerant units.
-
Monoblock refrigeration units.
-
Glass doors
-
Display shelf can be with gravity slide shelves.
Key features
01
Product Storage Temperature: 2 ~ 8。C [35.6~46.4。F]
02
Standard gravity slide, can automatic replenishment
03
Back storage, front display and sale access
04
Electric heating hollowed glass door, anti condensation
05
LED lighting on door
06
Optional customized sizes available
07
Off-cycle defrosting, energy saving, reduces operation costs
Specifications
Model |
Power(W) |
Dimension(mm) |
Refrigerant |
Temperature(℃) |
Capacity(L) |
JX-CVHDM3H | 660 |
2267*2250*2300 |
R404a |
2~8 |
10 |
JX-CVHDM4H | 880 | 2960*2250*2300 |
R404a |
2~8 |
13 |
JX-CVHDM5H | 1100 |
3653*2250*2300 |
R404a |
2~8 |
16.6 |
Note:
It also can be -18~-22 degree freezer room.
Welcome custom size
Welcome custom size
