Standard configuration
Standard configuration HFC R404a environmental friendly refrigerant
Multi-function operating panel and uP controller
Hot gas defrosting system
DC12V/24V operating voltage
Safety devices
- Emergency switch protection
- Thermal protection guard
- System HP/LP cutout switches
- Wire harness ESD insulation methods for reducing electromagnetic interference
Operation and control component
-
Microprocessor control system -
Automatic/Manual defrost -
Digital display -
Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes
Product key features
01
When truck stops, the unit still can work over night when plug in 220V or 380V electricity
02

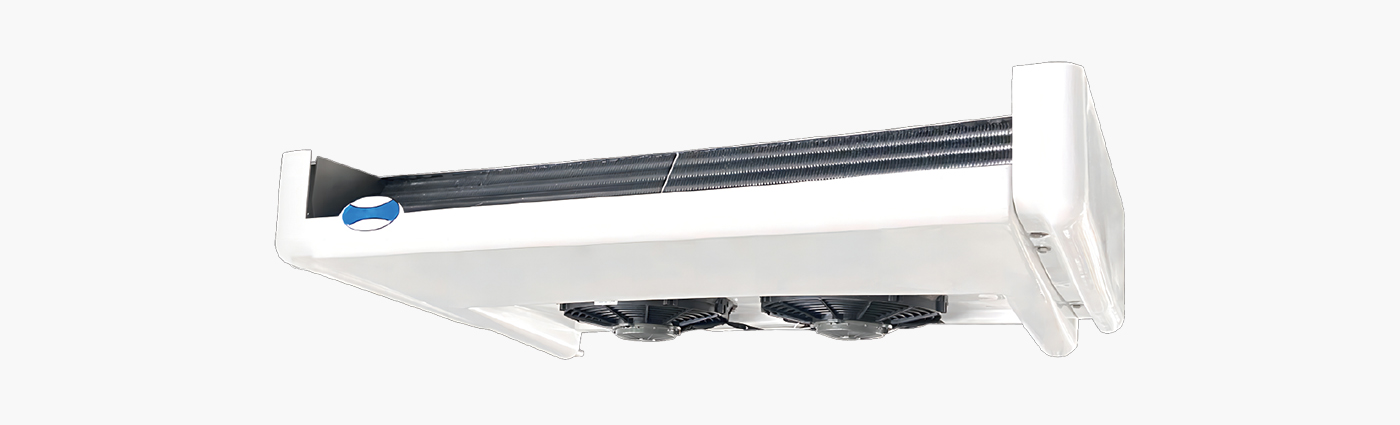

Internal ultra-thin evaporator, greatly increase the cargos loading capacity
03
Large cooling capacity ensure the goods safety. Even in case of high temperature or frequent door opening, the unit still can ensure the cargos safety
04
Large airflow volume, maintains the goods in fresh condition
05

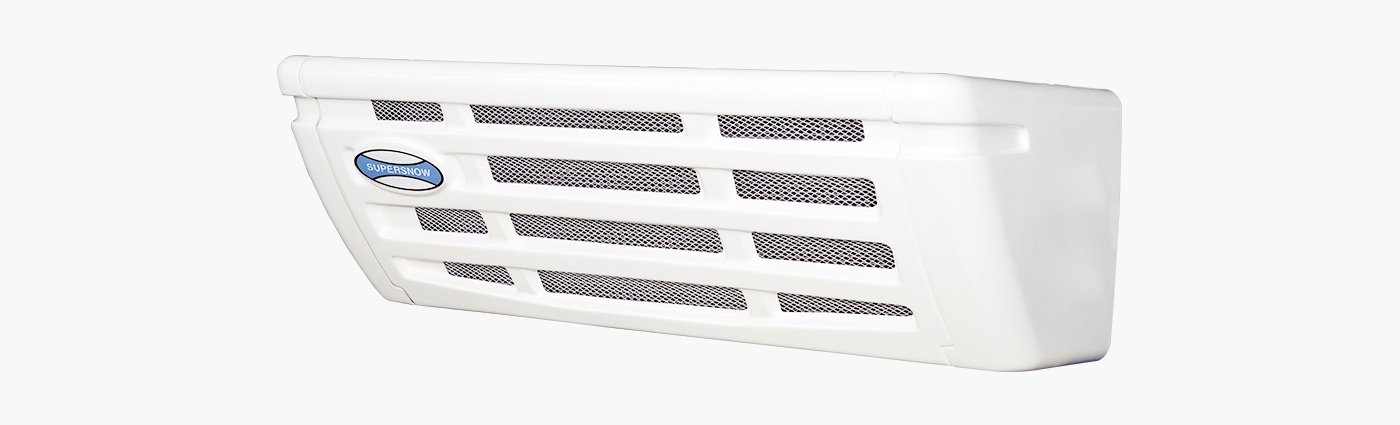

Electric hermetic compressor built in condenser, standby module integrated design to save install time and reduce failure rate
06
Microprocessor control, easy operation and safe
07
Fast installation, convenient maintenance, saving cost
08
Heating options
Specifications
| Model | KX-450KE | |||
| Cooling Capacity Ambient +30℃（86℉） | Temperature | Watts | Btu/hr | |
| Engine drive | 0℃/+32℉ | 4750 | 16205 | |
| -20℃/-4℉ | 2450 | 8360 | ||
| Electric standby | 0℃/+32℉ | 3880 | 13240 | |
| -20℃/-4℉ | 1970 | 6720 | ||
| Evaporator Airflow Volume | 1830m³/h | |||
| Road Compressor | Model | QP16 | ||
| Displacement | 163cc | |||
| Electric Standby Compressor | Displacement | Hermetic 35.7cc/rev | ||
| Condenser | Coil | Micro-channel | ||
| Dimension | 1270*590*415mm | |||
| Weight | 88kg | |||
| Evaporator | Coil | Copper tube&aluminum fin | ||
| Dimension | 1085*660*225mm | |||
| Weight | 23kg | |||
| Refrigerant Charge | R404a/1.8kg | |||
| Defrost | Hot gas defrost | |||
| Unit Volts | DC12V/DC24V | |||
| Electric Standby Voltage | 220V/1PH/50Hz | |||
| Application-box interal volume | 18m³（-20℃）~30m³（0℃） | |||
Note:
Application-internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
