Product key features
01
Tailored and perfect combination with the bus body, stream lime design, beautiful appearance;
02
Micro channel condenser, and internal thread copper tube evaporator core ensure high efficiency heating transfer and cooling capacity;
03
Keep good working performance at extreme ambient temperatures of up to +50℃;
04
Compressor, valves and some other key parts all adopt international famous brand;
05
Thermostat control system;
06
Heating, fresh air by options.
Specifications
|

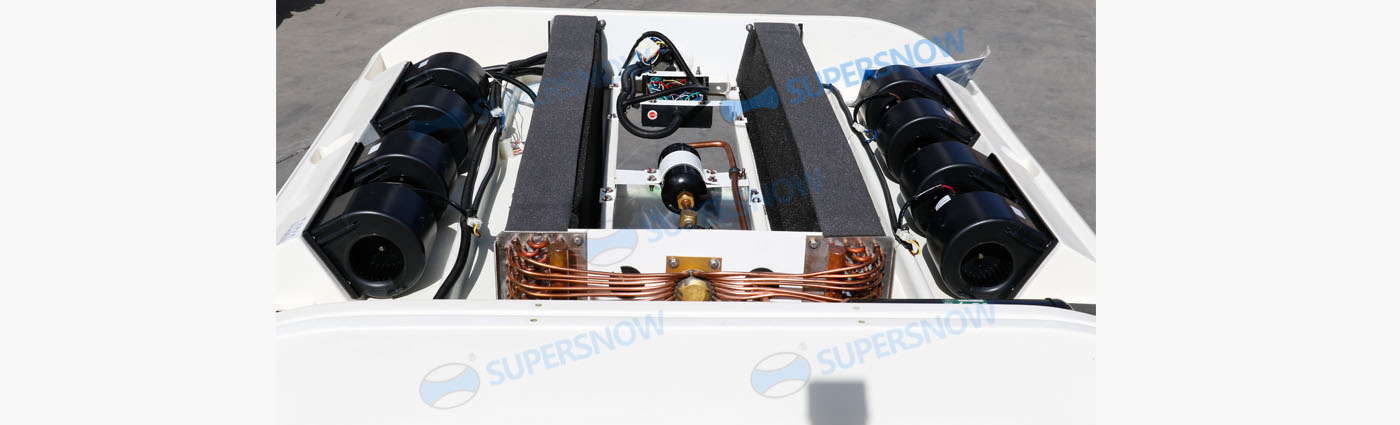

Traditional Roof Mount Bus Air Conditioning |
||
|
Model |
KX-18 |
|
|
Application range |
L7m ~ 7.5m |
|
|
Cooling features |
Cooling capacity |
21KW/18,000Kcal/71,412Btu/h |
|
Outdoor air parameter |
35℃ |
|
|
Indoor air parameter |
27℃, relative humidity 60% |
|
|
Voltage |
DC24V |
|
|
Power consumption |
≤60A |
|
|
Refrigerant |
R134a/2.7kg |
|
|
Compressor displacement |
313cc |
|
|
Condenser |
Micro channel |
|
|
3 x axial fan motors |
||
|
Evaporator |
Internally grooved copper tubing with aluminum fins |
|
|
4 x centrifugal fan motors |
||
|
Airflow |
4000m3/h |
|
|
Expansion valve |
Danfoss |
|
|
Safety device |
HP |
HP:2.5±0.12MPa |
|
LP |
LP:0.03±0.02MPa |
|
|
Exhaust temp. protection |
/ |
|
|
Temperature control system |
Digital |
|
|
Overall dimension |
2307*1620*183mm |
|
|
Weight |
118KG |
|
